Lines on a laptop LCD screen usually stem from software driver corruptions, a loose or damaged display flex cable, or hardware failure in the LCD panel, T-con board, or graphics processor. Connecting your laptop to an external display determines whether the issue lies in the physical screen assembly or the internal graphics hardware.
When visual artifacts appear across your laptop display, pinpointing the source quickly prevents unnecessary component replacements. Screen distortion can manifest as thin vertical colored stripes, thick horizontal bands, or a dense mesh of flickering pixels. Because an image travels from your operating system through the graphics driver, down the motherboard, across a physical ribbon cable, and into the liquid crystal display panel itself, a failure at any single point produces visible defects.
What do different types of screen lines indicate?
The direction, color, and behavior of lines on a laptop screen offer immediate clues about which hardware component or software layer has failed.
Vertical lines across the screen
Vertical lines running from top to bottom usually point to a hardware fault inside the LCD panel itself or along the ribbon cable connections. Liquid crystal displays control pixel columns using source driver integrated circuits located along the top or bottom edges of the panel assembly. When a column driver chip or tape-automated bonding (TAB) link separates from the glass substrate, an entire vertical column of pixels loses control signal. If gentle pressure applied to the bezel near the top or bottom alters the line, the internal driver bonding has likely failed.
Horizontal lines across the screen
Horizontal lines stretching from left to right typically indicate gate driver failure, timing controller (T-con) signal issues, or motherboard-level signal disruption. Gate drivers control the individual row lines across the pixel matrix. If horizontal lines flicker or cover uniform sections of the display, the timing controller board responsible for syncing row refresh rates may be failing to supply consistent voltage signals.
Single thin lines versus thick colored bands
A single hairline stroke, whether black, white, red, green, or blue, usually indicates a single dead pixel line caused by localized electrical failure or glass substrate trauma. Broad bands of lines, multicolored rainbow patterns, or distorted noise blocks usually signal broader data corruption. Broad bands often occur when a ribbon cable connector is unseated or when the graphics processing unit (GPU) outputs corrupted video memory (VRAM) data.
Static lines versus flickering or motion-sensitive lines
If screen lines remain completely static regardless of how you move the laptop lid, the problem is frequently a permanently damaged LCD pixel grid or driver chip. If the lines flicker, change color, disappear, or reappear when you alter the hinge angle of the display, the flexible video cable passing through the laptop hinge is pinched, worn, or loose at the motherboard connector.
Why do laptop LCD lines appear?
Understanding why display lines develop helps you choose the correct fix rather than wasting money on unnecessary parts.
Software and driver corruption
Your operating system relies on graphics drivers to translate software render calls into raw video signals. Corrupted display drivers, incomplete system updates, or mismatched display resolutions can cause rendering glitches that look like hardware defects. Software-induced lines are non-destructive and disappear as soon as correct driver files or video render pipelines are restored.
Loose or damaged internal ribbon cables
Laptops transmit video data using Embedded DisplayPort (eDP) or Low-Voltage Differential Signaling (LVDS) ribbon cables. These multi-wire cables pass through the laptop’s mechanical hinge housing, subject to friction and flexing every time the screen opens or closes. Over time, individual copper traces inside the cable can break, or the latching connector on the motherboard can slip out of alignment, resulting in dropped video channel data that shows as persistent lines.
LCD panel and driver IC failure
The LCD assembly contains glass layers, polarizers, liquid crystal fluid, and delicate Chip-on-Film (COF) driver packages. Physical impact, torsional stress from lifting the laptop by a single corner, or manufacturing defects can break internal trace lines or short-circuit driver chips. Once a driver IC or internal glass trace shorts out, affected pixel columns or rows can no longer switch state.
T-con board failures
The Timing Controller (T-con) board translates standard video signals coming from the motherboard into precise row-and-column voltage pulses needed by the LCD panel drivers. While some laptops feature integrated T-con boards bonded to the LCD panel itself, others use standalone control boards. A failing T-con board creates timing errors, resulting in horizontal line artifacts, washed-out images, or severe display flickering.
GPU and VRAM overheating or solder joint degradation
When a dedicated or integrated GPU runs too hot due to clogged cooling vents, degraded thermal paste, or fan failure, the video memory chips (VRAM) can output corrupted frame buffers. Additionally, micro-fractures in the Ball Grid Array (BGA) solder connections under the graphics chip cause intermittent communication loss, generating line artifacts, screen freeze, or system crashes.
Physical impact and pressure points
Laptops encounter significant daily physical stress. Dropping a laptop bag onto a hard surface, storing heavy books on top of a closed laptop, or accidentally shutting the lid with a pen on the keyboard creates severe localized pressure. This pressure fractures the internal liquid crystal matrix or tears microscopic flex leads without necessarily cracking the outer protective glass.
How do you diagnose laptop LCD lines step by step?
A systematic diagnosis eliminates guesswork and identifies whether the fix requires a quick driver reinstall, a simple cable adjustment, or a full screen replacement.
Step 1: Test with an external monitor
Connect your laptop to an external monitor, TV, or projector using an HDMI, DisplayPort, or USB-C cable. Duplicate or extend your desktop display in your system display settings.
- Lines appear ONLY on the laptop screen: The laptop GPU, operating system, and system RAM are working correctly. The fault resides in the laptop display panel, the internal eDP flex cable, or the physical cable connections.
- Lines appear on BOTH the laptop screen and external display: The fault resides in the graphics driver, operating system rendering pipeline, system VRAM, or the graphics card itself. Replacing the laptop screen will not solve this problem.
Step 2: Perform the hinge flex test
Open your laptop lid and slowly tilt it back and forth through its full range of motion while watching the lines carefully. Gently apply light pressure around the bezel edges near the hinges.
- If lines change shape, flicker, or clear up at specific angles, the internal display flex cable is loose, pinched, or damaged inside the hinge cavity.
- If the lines remain unchanged regardless of screen movement, the LCD driver chips or glass panel substrate are likely defective.
Step 3: Boot into BIOS or UEFI settings
Restart your laptop and repeatedly tap the designated setup key (typically F2, F10, F12, or Del depending on your manufacturer) to enter the system BIOS/UEFI screen before Windows or macOS loads.
- If lines are STILL VISIBLE in BIOS, the issue is purely hardware-based (damaged screen, bad cable, or motherboard fault). Operating system drivers are not involved at this stage.
- If lines DISAPPEAR in BIOS, your laptop hardware is healthy. The issue is driven by corrupted graphics drivers, incorrect display resolution settings, or an incompatible operating system update.
Step 4: Verify display refresh rate and resolution settings
In Windows, navigate to Settings > System > Display > Advanced display. Check the active desktop resolution and screen refresh rate. Setting a display to an unsupported refresh rate (such as forcing 120Hz on a native 60Hz panel) causes timing mismatch lines. Revert all display options to their recommended native values.
Step 5: Check and update graphics drivers
Open Device Manager, expand Display adapters, right-click your graphics hardware (Intel, AMD, or NVIDIA), and select Update driver. For complete driver cleanups, download the official graphics installer package directly from your laptop manufacturer’s website or GPU vendor.

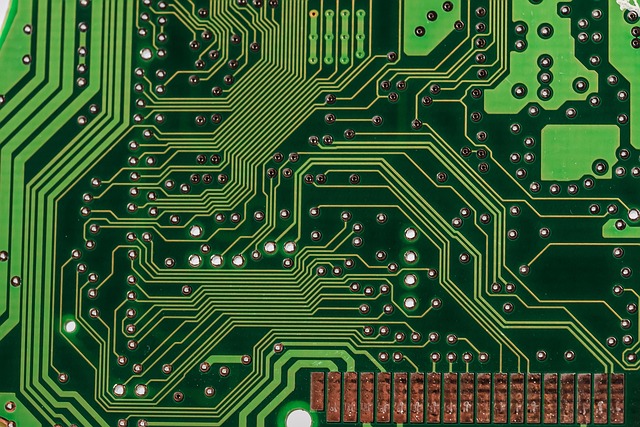

Step 6: Inspect internal physical connections (Advanced)
If basic diagnostics confirm a hardware issue within the display assembly, disconnect the main power adapter and remove the bottom case cover. Always disconnect the main internal battery cable from the motherboard before touching display connectors. Locate the eDP connector latch, lift the retaining bail, slide out the flex cable, check for bent connector pins or burn marks, and re-seat the cable firmly into its socket.
How can you fix lines on a laptop LCD screen?
Once you locate the defect using the diagnostic steps above, execute the corresponding repair strategy below.
Software fixes
If lines disappear in BIOS or clean reinstall states, apply these software solutions:
- Clean driver installation using DDU: Download Display Driver Uninstaller (DDU) and boot into Windows Safe Mode. Run DDU to completely wipe active graphics driver files and registry keys. Boot back into normal Windows and install the latest stable graphics driver package.
- Roll back recent update: If display lines appeared immediately after an operating system update, open Device Manager, right-click your GPU under Display adapters, open Properties, select the Driver tab, and click Roll Back Driver.
- Adjust refresh rate and color depth: Ensure your display adapter properties match the exact specifications of the built-in LCD panel. Adjusting color depth from 10-bit to 8-bit can clear bandwidth distortion on failing internal cables.
Internal cable reseating or replacement
When lines shift during hinge movement, replacing or re-securing the eDP flex cable resolves the issue without needing a costly screen replacement.
- Power down the laptop, unplug the charger, and remove the bottom casing screws.
- Disconnect the main battery connector from the motherboard to eliminate standby voltage across the eDP socket.
- Remove the display hinge covers and unscrew the hinge brackets securing the top lid assembly.
- Unclip the plastic display bezel using a thin nylon pry tool, working carefully around the web camera and lower logo edge.
- Unscrew the LCD panel mounting brackets and lift the screen out to access the rear video connector tape.
- Peel back the adhesive tape covering the ribbon cable latch, release the wire clip, and pull the cable out straight.
- If physical wire fraying is visible along the hinge path, replace the cable assembly (typically $15 to $40). Firmly reinsert the new cable, lock the latching clip, re-apply adhesive tape, and reassemble.
LCD panel replacement
When the screen substrate or bonded TAB drivers fail, replacing the raw LCD panel is necessary. Matching technical specifications is essential before buying a replacement screen.
To order the correct replacement, retrieve the exact panel part number printed on the sticker behind the original display (such as N156HCA-EA1 or B140HAN04.0). Do not rely solely on the laptop model name, as manufacturers often fit different screen variants (touch vs. non-touch, 30-pin vs. 40-pin eDP, 60Hz vs. 144Hz) within the same model series.
- Turn off the laptop and remove power inputs and internal battery connections.
- Pry off the screen bezel carefully to expose the panel retention screws or pull-stretch adhesive strips.
- If stretch-release adhesive strips are present, pull the rubber tabs slowly parallel to the display frame to release the panel without flexing it.
- Disconnect the eDP flex cable from the rear connector latch.
- Align the replacement screen, secure the eDP connector with fresh tape, re-anchor the mounting brackets, re-attach the battery, and test system power before snapping the plastic bezel back into place.
GPU thermal and hardware maintenance
If lines stem from GPU thermal throttling or VRAM instability, clean out internal copper heatsinks using compressed air. If lines persist on both internal and external screens despite safe operating temperatures, the GPU BGA solder joints have degraded, requiring motherboard replacement or professional micro-soldering reflow.
Comparing laptop display repair options and costs
The matrix below compares common causes, repair procedures, component costs, and technical difficulty levels to help you decide how to address your laptop display lines.
| Issue / Component | Primary Symptom | Repair Method | Estimated Part Cost | Difficulty Level | Recommended Action |
|---|---|---|---|---|---|
| Software Driver Corruption | Lines vanish in BIOS and on external monitors | DDU driver wipe & clean reinstall | $0 | Easy | DIY software update |
| Unseated eDP Cable | Lines flicker when lid angle changes | Reseat internal flex cable connector | $0 | Moderate | DIY internal inspection |
| Damaged eDP Flex Cable | Permanent lines that alter with lid movement | Replace display flex ribbon cable | $15 – $40 | Moderate | DIY or repair shop cable swap |
| Faulty T-con / Driver IC | Persistent vertical or horizontal static lines | Replace LCD panel assembly | $100 – $300 | Moderate | DIY screen swap if part value justifies cost |
| Defective LCD Glass Substrate | Crack marks, pressure spots, black ink blobs | Replace LCD panel assembly | $100 – $300 | Moderate | DIY panel replacement |
| Overheating GPU / VRAM | Lines on both internal and external screens | Clean cooling vents, replace thermal paste | $5 – $15 | Moderate | DIY thermal service |
| Failed GPU BGA Solder Joints | Persistent lines, crashes on all displays | Replace motherboard or professional reflow | $200 – $500+ | Advanced / Professional | Professional repair or replace laptop |

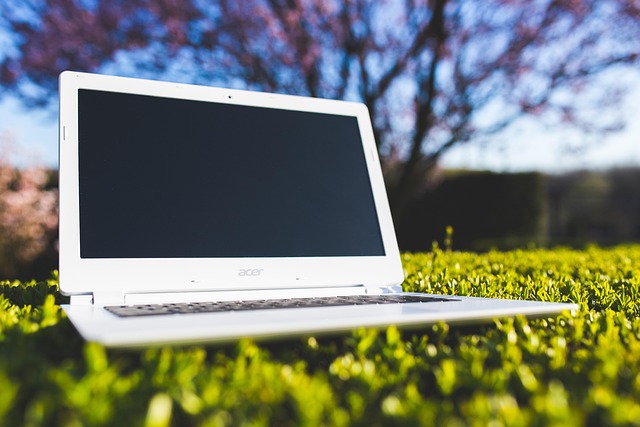

When should you replace the screen versus buying a new laptop?
Determining whether to repair a damaged screen or invest in a new laptop comes down to economic value and hardware age.
For budget consumer laptops such as older Dell Inspiron laptops or basic Chromebooks valued under $300, paying $150 for a new panel and labor rarely makes sense. However, for high-end workstations or gaming systems with modern processors, spending $150 to $250 on a panel replacement preserves a high-value machine.
Additionally, evaluate secondary components. If your laptop already suffers from declining battery health, limited soldered RAM, or an outdated processor, sinking funds into a screen repair simply extends the lifespan of an otherwise obsolete machine.
What common mistakes should you avoid when dealing with screen lines?
Avoid these common missteps during diagnosis and repair to save time and prevent secondary damage:
- Buying a replacement panel without opening the lid first: Ordering parts based solely on laptop branding often leads to incorrect pin counts, incompatible mounting brackets, or wrong display signals. Always retrieve the panel model code from the rear sticker on the original screen.
- Failing to disconnect the battery before unseating cables: Modern laptop motherboards supply continuous power to the display connector for backlight operation even when powered off. Inserting or pulling an eDP cable while the battery remains connected can short out the motherboard backlight fuse or system power rail instantly.
- Applying direct physical pressure to “fix” lines: Pressing or massaging screen lines can crush underlying liquid crystal cells and snap delicate TAB bonding leads, turning a minor single-line artifact into irreversible screen damage.
- Assuming screen lines always mean a broken display: Skipping the external monitor test frequently leads users to replace functional LCD screens when the underlying cause was a corrupt GPU driver or failing motherboard VRAM.
- Pulling LCD bezels without checking for concealed screws: Many display bezels feature hidden screws concealed beneath soft rubber dampeners along the bottom edge. Forcefully prying bezels without removing these screws snaps plastic retaining clips and distorts the lid casing.
How can you prevent future laptop screen line issues?
Adopting simple maintenance and handling habits minimizes mechanical stress on delicate screen components:
- Open the lid from the center: Always lift or close your laptop lid by grasping the middle top edge rather than twisting from a single top corner. Lifting from one side creates torsional twisting across the hinges, straining internal eDP copper traces and driver chips.
- Use rigid protective sleeves: Avoid stuffing your laptop into overly packed backpacks where textbooks or heavy gear press against the lid casing. Use padded or hard-shell sleeves to prevent localized pressure spots.
- Clear keyboard surfaces before closing: Never place pens, earphones, paperclips, or cable connectors on the lower keyboard deck when closing the lid. Small objects trapped between the screen glass and keyboard shatter panels easily.
- Clean cooling vents regularly: Keep internal heat under control by blowing compressed air through thermal vents every few months. Preventing GPU thermal spikes protects onboard VRAM solder pads from heat-induced micro-fractures.
Frequently asked questions
Can laptop LCD lines be fixed by updating drivers?
Yes, updating or reinstalling graphics drivers fixes lines whenever the issue stems from software corruption or improper display resolution settings. If screen lines vanish in the BIOS menu or on external displays, software updates are highly likely to resolve the problem.
How much does it typically cost to fix laptop screen lines?
Software fixes and driver updates are free, while fixing loose internal ribbon cables requires no parts cost if done yourself. Replacing a replacement LCD panel generally costs between $100 and $300 for parts and labor, while repairing motherboard graphics chips can run $200 to $500 or more.
How long do laptop screen repairs take?
Software and driver updates take 10 to 30 minutes to complete. Reseating internal cables or replacing a standard LCD panel usually takes 30 to 60 minutes for a technician once the replacement component is on hand.
What’s the difference between vertical and horizontal lines on a laptop screen?
Vertical lines typically indicate failure within the column drivers, TAB bonding links, or video ribbon cable connections. Horizontal lines point toward gate driver issues, timing controller board faults, or motherboard signal timing mismatches.
Is it worth repairing a laptop with screen lines?
For high-end or modern laptops, a $150 panel swap is economical, whereas older or low-spec devices are better replaced.
